Product Details
Place of Origin: Guangdong, China
Brand Name: Jrkconn
Certification: ISO9001
Model Number: JRKPP-ST04 Series
Payment & Shipping Terms
Minimum Order Quantity: 100 PCS
Price: Contact us
Packaging Details: Tube Packing
Delivery Time: 7-14 working days
Payment Terms: T/T
Supply Ability: 1000000 per week
|
Type:
|
Pogo Pin Connectors
|
Number Of Positions:
|
4P
|
Barrel Material:
|
Brass Alloy C3604
|
Plunger Material:
|
Brass Alloy C3604
|
Spring Material:
|
Stainless Steel SUS304
|
Plastic Material:
|
PA46
|
Plating:
|
Nickel Plating50-100μ", Gold Plating3μ"
|
Operating Current:
|
2A
|
|
Type:
|
Pogo Pin Connectors
|
|
Number Of Positions:
|
4P
|
|
Barrel Material:
|
Brass Alloy C3604
|
|
Plunger Material:
|
Brass Alloy C3604
|
|
Spring Material:
|
Stainless Steel SUS304
|
|
Plastic Material:
|
PA46
|
|
Plating:
|
Nickel Plating50-100μ", Gold Plating3μ"
|
|
Operating Current:
|
2A
|
| Attribute | Value |
|---|---|
| Type | Pogo Pin Connectors |
| Number of Positions | 4P |
| Barrel Material | Brass alloy C3604 |
| Plunger Material | Brass alloy C3604 |
| Spring Material | Stainless steel SUS304 |
| Plastic material | PA46 |
| Plating | Nickel plating50-100μ", Gold plating3μ" |
| Operating Current | 2A |

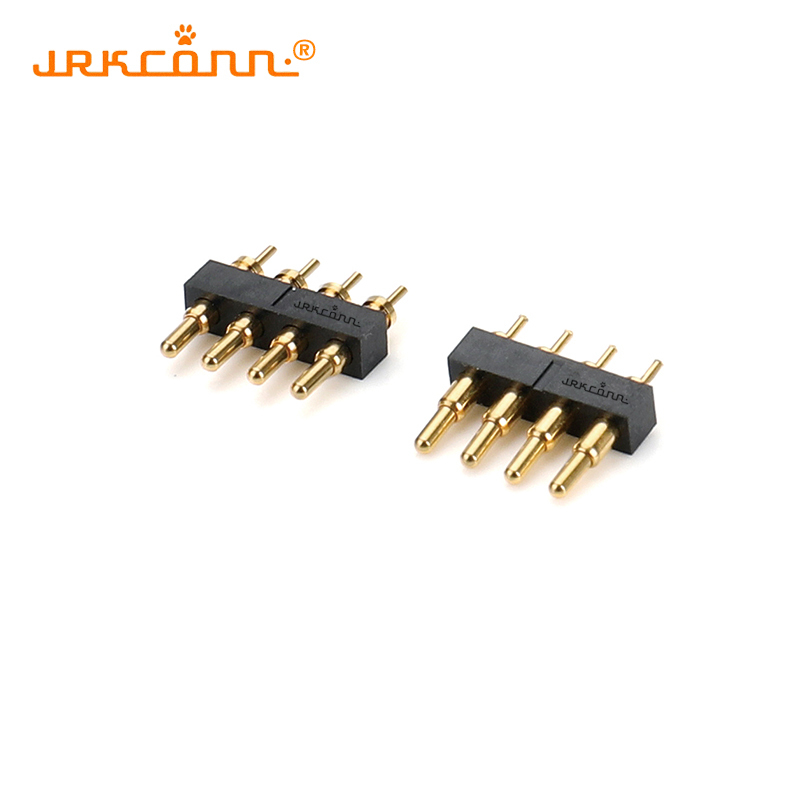

Pogo pin connectors, also known as spring-loaded contacts, are compact, high-reliability electrical connectors composed of a precision-machined plunger, barrel, and spring. This structure ensures consistent contact pressure, low resistance, and durable performance, even under frequent mating cycles or harsh environments.
| Parameter | Value |
|---|---|
| Pitch | 2.54mm |
| Insulator Material | PA46+30% glassfiber, PA9T, LCP (Halogen-free material, fire rating UL94V-0) |
| Plunger | Brass, plated nickel 60-80μ", plated gold 1-3μ" |
| Barrel | Brass, plated nickel 60-80μ", plated gold 1-3μ" |
| Spring | Stainless steel SUS304 |
| Rated Current | 2A |
| Voltage | 5-32V |
| Contact Resistance | 50mΩ max |
| Operating Temperature | -40℃ ~ 105℃ |
| Life Span | ＞20000 cycles |
We are a professional manufacturer with 15 years of experience specializing in electronic connectors. Our main products are pin headers, female headers, box headers, ejector headers, DIN41612 connectors, pins, and other electronic connectors.
Yes, we are ISO9001 & ISO14001 certified, and our products comply with environmental standards (ROHS, REACH).
Yes, we provide samples for quality verification. For 1-2 pieces, samples are free (customer pays shipping). Standard samples deliver in 3-5 days; custom samples in 7-10 days.
For any quality issues, we provide prompt solutions and support.
