Product Details
Place of Origin: Guangdong, China
Brand Name: Jrkconn
Certification: ISO9001
Model Number: JRKPPHM Series
Payment & Shipping Terms
Minimum Order Quantity: Contact Us
Price: Contact us
Packaging Details: Tube Packing
Delivery Time: 7-14 working days
Payment Terms: T/T
Supply Ability: 1000000 per week
|
Pitch:
|
2mm/2.54mm/3mm
|
Barrel:
|
Brass
|
Plunger:
|
Brass
|
Spring:
|
Stainless Steel
|
Number Of Positions:
|
As Your Request
|
Pin:
|
4 Pin
|
Voltage:
|
12V
|
Housing:
|
Black Polyester
|
|
Pitch:
|
2mm/2.54mm/3mm
|
|
Barrel:
|
Brass
|
|
Plunger:
|
Brass
|
|
Spring:
|
Stainless Steel
|
|
Number Of Positions:
|
As Your Request
|
|
Pin:
|
4 Pin
|
|
Voltage:
|
12V
|
|
Housing:
|
Black Polyester
|

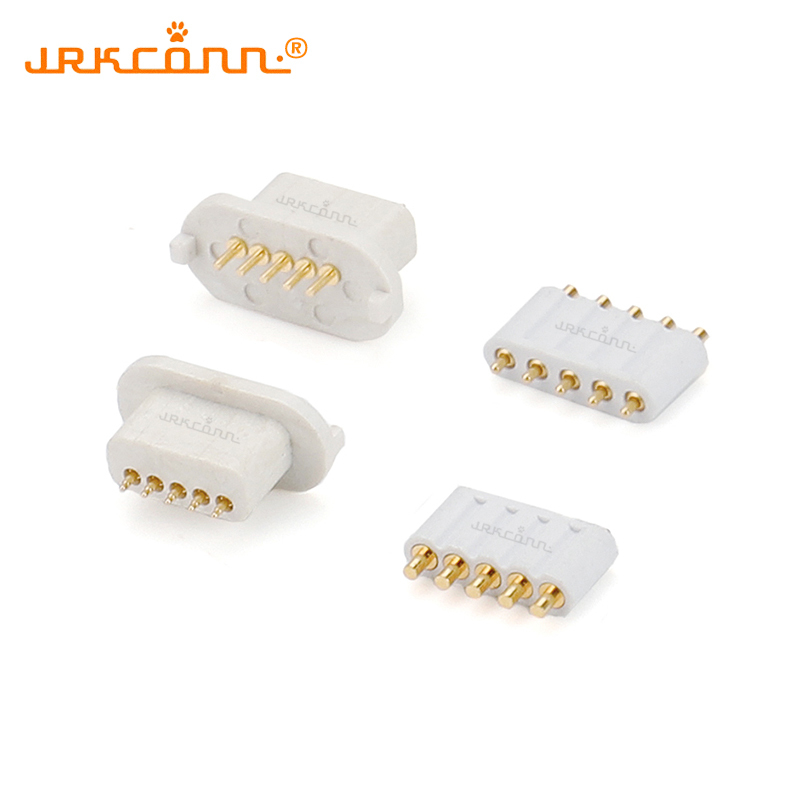

5Pin Magnetic Electrical Connector Spring Pin Connector with 1.27mm pitch offers reliable connectivity for various applications.
| Parameter | Specification |
|---|---|
| Pitch | 1.27mm, 2mm, 2.54mm (custom pitches available) |
| Insulator Material | PBT UL94V-0 (customized) |
| Plunger/Barrel | Brass Au over Ni |
| Spring | SUS Au |
| Plating | Gold plating (customized available) |
| Type | SMT, DIP, Solder, Right Angle, Double Header |
| Rated Current | 1~3A |
| Voltage | 5~12V |
| Contact Resistance | 50mΩ max |
| Insulation Resistance | 1000 mΩ |
| Salt Spray | 24H |
| Operating Temperature | -40℃ ~ 105℃ |
| Cycle Life | 100,000 times |
| Application | PCB, power, and charging equipment |
| Selling units | Single item |
|---|---|
| Package | Tube / PE bag / tray / tape & reel packing |
| Port | Shenzhen |
| Quantity (pcs) | Samples | 1 - 100K | > 100K |
|---|---|---|---|
| Estimated delivery time (business day) | 3 - 7 | 15 | To be negotiated |
Many products are available that are not listed on our website. Contact us for customized solutions.
Medical Equipment
Automotive
Home Appliance
Consumer Electronics
We are a professional manufacturer with 15 years of experience specializing in electronic connectors. Our product range includes pin headers, female headers, box headers, ejector headers, DIN41612 connectors, and other electronic connectors, all offering good quality at competitive prices.
Yes, we are ISO9001 & ISO14001 certified. Our products comply with environmental protection standards (ROHS, REACH, etc.).
Yes, we provide samples for quality verification. For 1-2 pieces, samples are free with only express courier cost to be paid by customer. We recommend checking samples before bulk orders.
Standard samples: 3-5 working days. Customized samples: 7-10 working days.
For any quality issues, contact us immediately for prompt investigation and resolution.
Samples typically take 3-4 days, mass production orders (10K+ pieces) 1-2 weeks. We ship via DHL, UPS, FedEx, TNT or customer-preferred carriers (7-12 days delivery). Air and sea shipping options available.
