Product Details
Place of Origin: Guangdong, China
Brand Name: Jrkconn
Certification: ISO9001
Model Number: JRKPP-ST08 Series
Payment & Shipping Terms
Minimum Order Quantity: 100 PCS
Price: Contact us
Packaging Details: Tube Packing
Delivery Time: 7-14 working days
Payment Terms: T/T
Supply Ability: 1000000 per week
|
Type:
|
Pogo Pin Connectors
|
Number Of Positions:
|
8P
|
Barrel Material:
|
Brass C3604
|
Plunger Material:
|
Brass C3604
|
Spring Material:
|
Stainless Steel SUS304
|
Plastic Material:
|
PA46
|
Plating:
|
Nickel Plating50-100μ", Gold Plating3μ"
|
Operating Current:
|
3A
|
|
Type:
|
Pogo Pin Connectors
|
|
Number Of Positions:
|
8P
|
|
Barrel Material:
|
Brass C3604
|
|
Plunger Material:
|
Brass C3604
|
|
Spring Material:
|
Stainless Steel SUS304
|
|
Plastic Material:
|
PA46
|
|
Plating:
|
Nickel Plating50-100μ", Gold Plating3μ"
|
|
Operating Current:
|
3A
|

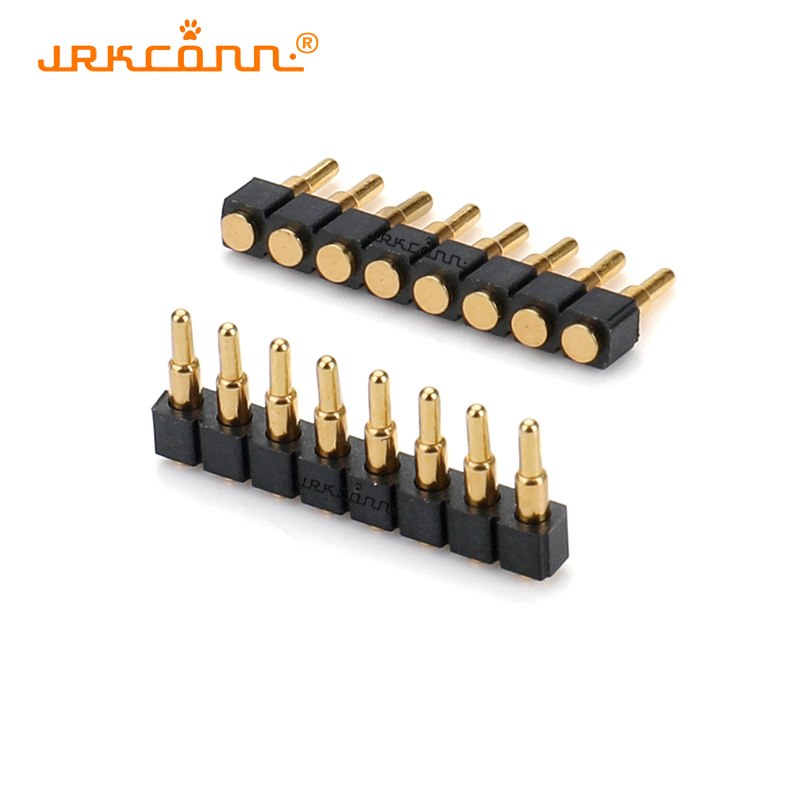

High-performance brass pogo pin connectors featuring gold plating for superior conductivity and long-term reliability. Ideal for demanding industrial and commercial applications requiring stable current transmission and frequent mating cycles.
| Attribute | Value |
|---|---|
| Type | Pogo Pin Connector |
| Number of Positions | 8P |
| Barrel Material | Brass C3604 |
| Plunger Material | BrassC3604 |
| Spring Material | Stainless steel SUS304 |
| Plastic material | PA46 |
| Plating | Nickel plating 50-100μ", Gold plating 3μ" |
| Operating Current | 3A |
Pogo pin connectors, also known as spring-loaded contacts, are compact, high-reliability electrical connectors composed of a precision-machined plunger, barrel, and spring. This structure ensures consistent contact pressure, low resistance, and durable performance, even under frequent mating cycles or harsh environments.
At JRK Connectors, we specialize in the design and manufacturing of high-precision pogo pin connectors for demanding industrial and commercial applications. Our pogo pins are engineered for long lifespan (100,000+ cycles), stable current transmission (up to 20A), and tight dimensional tolerances.
| Parameter | Value |
|---|---|
| Pitch | 2.54mm |
| Insulator Material | PA46 |
| Plunger | Brass, plated nickel 60-80μ", plated gold 1-3μ" |
| Barrel | Brass, plated nickel 60-80μ", plated gold 1-3μ" |
| Spring | Stainless steel SUS304 |
| Rated Current | 3A |
| Voltage | 5-32V |
| Contact Resistance | 50mΩ max |
| Operating Temperature | -40℃ ~ 105℃ |
| Life Span | ＞20000 cycles |
We are a professional manufacturer with 15 years of experience specializing in electronic connectors. Our main products are pin headers, female headers, box headers, ejector headers, DIN41612 connectors, pins, and other electronic connectors, with good quality and competitive prices.
Yes, we are. For us at Jrkconn, quality is a concrete result rather than a mere formal value. Our company is 1S09001 & 1S014001 certificated, and our ranges comply with safeguarding the environment (ROHS, REACH, etc.).
Yes, we provide the samples for our customers to check the quality of the product. We recommend that our customers take the samples from us before placing an order. This will help customers to understand our product and quality better. For 1 or 2 pieces, they are free, and customers only pay the express courier cost.
The standard sample delivery date is about 35 working days, and the customized samples need 710 working days.
If a customer finds a quality problem, please feel free to contact us, and we will study the problem and provide solutions as fast as we can.
Normally, a sample needs 3-4 days, and mass production time needs 1-2 weeks for order quantities of more than 10K pieces. We can arrange the shipment by DHL, UPS, FedEx or TNT, or any other preferred collector from the customer. It usually takes 7~12 days to arrive. Airline and sea shipping are also optional.
