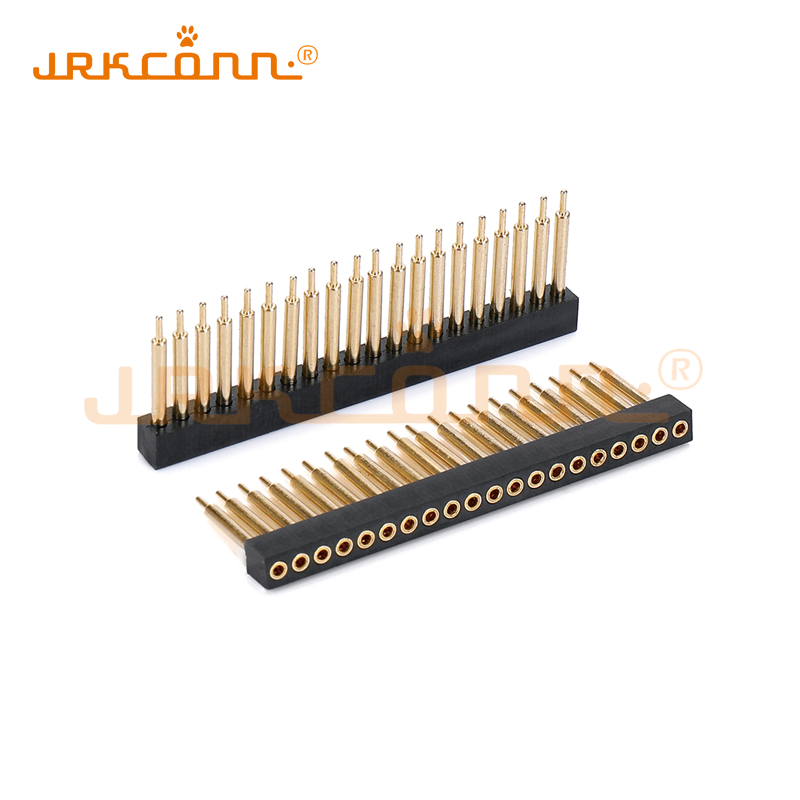

Gold Plating 1.778mm Female Header Precision PCB Socket Connector

Based on verified design and performance ratings, this type of female header may be evaluated for the following applications:

• PCB interconnections in compact electronic assemblies
• Embedded electronic modules
• Industrial control and instrumentation boards
• Electronic test and measurement equipment
• Custom electronic devices and OEM products

Final application suitability depends on the connector's confirmed electrical ratings, mechanical design, and environmental requirements.

JRKCONN can review customization requirements for the following parameters:

• Pin count: Specify the required number of positions
• Contact and terminal dimensions: Provide the mating pin diameter, terminal length, and dimensional drawing
• Insulator dimensions: Specify the body height, width, and other mechanical constraints
• Contact material and plating: Define the required base material and plating thickness or finish
• PCB mounting requirements: Provide the PCB thickness, hole diameter, layout, and assembly process
• Packaging requirements: Confirm whether bulk, tube, or tray packaging is needed

Custom designs are subject to technical evaluation, tooling requirements where applicable, minimum order quantity, and production feasibility.

To help us evaluate your requirement accurately, please provide:

• Required quantity and estimated annual demand
• Product drawing, specification sheet, or physical sample
• Required pin count and overall dimensions
• Mating connector part number, if available
• Contact material and plating requirements, if specified
• Target application and any relevant electrical or environmental requirements

JRKCONN will review the available information and advise on specification confirmation, customization feasibility, sample arrangements, and quotation.
