Product Details
Place of Origin: Guangdong, China
Brand Name: Jrkconn
Certification: ISO9001
Model Number: JRK141R-2.54
Payment & Shipping Terms
Minimum Order Quantity: Contact Us
Price: Contact us
Packaging Details: PE Bag Packaging
Delivery Time: 7-14 working days
Payment Terms: T/T,MoneyGram,D/P,D/A,L/C
Supply Ability: 10000000 per week
|
Pitch:
|
2.54mm
|
Number Of Poles:
|
As Your Requirements
|
Current Rating:
|
4Amps
|
Housing Material:
|
PA66, UL94V-0
|
Pin Header:
|
Brass
|
Wire Guage:
|
26AWG-16AWG
|
|
Pitch:
|
2.54mm
|
|
Number Of Poles:
|
As Your Requirements
|
|
Current Rating:
|
4Amps
|
|
Housing Material:
|
PA66, UL94V-0
|
|
Pin Header:
|
Brass
|
|
Wire Guage:
|
26AWG-16AWG
|

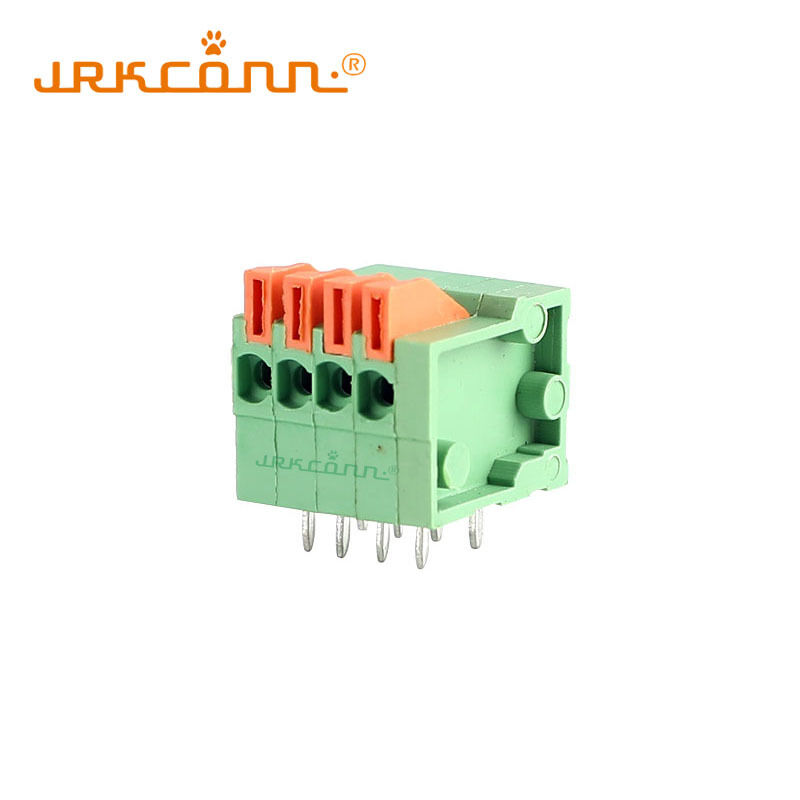

PCB spring terminal blocks are compact, insulated PCB wire connectors designed for fast, secure, and tool-free electrical connections on printed circuit boards. Using an internal spring clamp mechanism, these terminal blocks maintain constant contact pressure, ensuring reliable power and signal transmission even in high-vibration or space-constrained applications.
Unlike traditional screw terminal blocks, spring terminal blocks for PCBs eliminate the need for screws, simplifying installation and reducing maintenance time. Wires can be connected quickly through push-in or tension spring technology, improving assembly efficiency and minimizing wiring errors.
Backed by 13+ years of manufacturing expertise, we specialize in terminal block solutions engineered for performance, reliability, and long-term stability.
Every product undergoes 100% inspection before shipment, ensuring dependable quality, eliminating defects, and protecting your projects from costly delays or failures.
From design to delivery, our one-stop manufacturing solution simplifies your supply chain, reduces sourcing complexity, and helps you save time and control costs.
Our engineering team works closely with you, providing custom drawings, fast technical responses, and application-specific solutions to bring your ideas to market faster.
| Material Specifications | |
|---|---|
| Model Number | JRK141R-2.54 |
| Type | PCB Spring Terminal Blocks |
| Pitch | 2.54mm |
| Poles | 1P~XXP |
| Wire Guard | Phosphor Bronze, Ni Plating |
| Pin Header | Brass, Tin Plating |
| Housing Material | PA66, UL94V-0 |
| Electrical Specifications | |
|---|---|
| Voltage Rating | 150V |
| Withstanding Voltage | AC 1500V / 1Min |
| Current Rating | 4A |
| Wire Gauge | 26-16AWG |
| Mechanical Specifications | |
|---|---|
| Temperature Range | -40℃~+105℃ |
| Max Soldering | +250℃ for 5 Sec |
| Strip Length | 10mm |
| Color | Green |
Note: The actual product color may vary slightly from the images shown due to variations in monitor settings. All measurements are taken manually and may have slight deviations.
| Selling Units | Single item |
| Package | Tray/bag + carton box packing |
| Port | Shenzhen |
| Samples | 3 ~ 7 working days |
| 1 ~ 100K | 15 business days |
