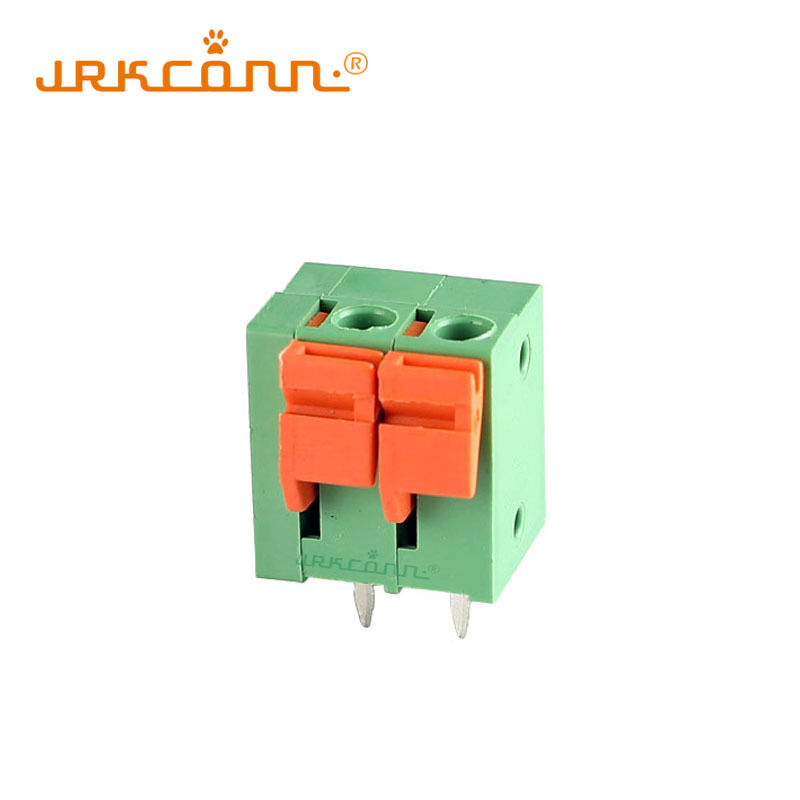

Name: 5.08mm/7.62mm Pitch PA66 Housing PCB Spring Terminal Blocks 2 Pin
Brand: SHENZHEN JRKCONN ELECTRONICS CO.,LTD
SKU: JRK142V-5.08/7.62
Price: 0.07 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: Jrkconn

Certification: ISO9001

Model Number: JRK142V-5.08/7.62

Payment & Shipping Terms

Minimum Order Quantity: Contact Us

Price: Contact us

Packaging Details: PE Bag Packaging

Delivery Time: 7-14 working days

Payment Terms: T/T,MoneyGram,D/P,D/A,L/C

Supply Ability: 1000000 per week

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                                                    5.08mm/7.62mm Pitch PCB Spring Terminal Block, PA66 Housing Spring Terminal Block, Tool-Free Connection PCB Terminal Connector


Pitch:	5.08/7.62mm	Number Of Poles:	1P~24P
Rated Current:	4A	Housing:	PA66, UL94V-0
Pin Header:	Brass	Wire Guage:	26-16AWG

Pitch:	5.08/7.62mm
Number Of Poles:	1P~24P
Rated Current:	4A
Housing:	PA66, UL94V-0
Pin Header:	Brass
Wire Guage:	26-16AWG

5.08mm/7.62mm Pitch PA66 Housing PCB Spring Terminal Blocks 2 Pin

5.08mm & 7.62mm Pitch Spring Type PCB Terminal Block

PCB spring terminal blocks are compact, insulated PCB wire connectors designed for fast, secure, and tool-free electrical connections on printed circuit boards. Using an internal spring clamp mechanism, these terminal blocks maintain constant contact pressure, ensuring reliable power and signal transmission even in high-vibration or space-constrained applications.

Unlike traditional screw terminal blocks, spring terminal blocks for PCBs eliminate the need for screws, simplifying installation and reducing maintenance time. Wires can be connected quickly through push-in or tension spring technology, improving assembly efficiency and minimizing wiring errors.

Application Fields

Programmable Logic Controller (PLC) Systems: For high-density Input/Output (I/O) point connections
Factory Automation & Robotics: Where end-effectors, tool changers, or sensor modules require frequent disconnection
Motor Control Centers (MCCs) & Power Distribution Panels: For connecting contactors, drives, and circuit breakers
Transportation: Railway and mobile equipment requiring reliable, vibration-proof connections

Why Choose JRKCONN?

Engineering You Can Trust

Backed by 13+ years of manufacturing expertise, we specialize in terminal block solutions engineered for performance, reliability, and long-term stability.

Quality Without Compromise

Every product undergoes 100% inspection before shipment, ensuring dependable quality, eliminating defects, and protecting your projects from costly delays or failures.

One Partner. Total Solution

From design to delivery, our one-stop manufacturing solution simplifies your supply chain, reduces sourcing complexity, and helps you save time and control costs.

Support That Goes Beyond Products

Our engineering team works closely with you, providing custom drawings, fast technical responses, and application-specific solutions to bring your ideas to market faster.

Product Specifications

Material Specifications
Model Number	JRK142V-5.08/7.62
Type	Spring Terminal Block
Pitch	5.08mm, 7.62mm
Poles	1~XXP
Wire Guard	Phosphor Bronze, Ni Plating
Pin Header	Brass, Tin Plating
Housing Material	PA66, UL94V-0
Electrical Specifications
Voltage Rating	150V
Withstanding Voltage	AC 1500V / 1Min
Current Rating	4A
Wire Gauge	26-16AWG
Mechanical Specifications
Max Soldering	+250℃ for 5 Sec
Strip Length	10mm
Color	Green

Note: The actual product color may vary slightly from the images shown due to variations in monitor settings. All measurements are taken manually and may have slight deviations.

Technical Drawing

Packing & Delivery

Estimated Delivery Time
Selling Units	Single item
Package	Tray/bag + carton box packing
Port	Shenzhen
Samples	3 ~ 7 working days
1 ~ 100K	15 business days

Custom Manufacturing Process

Frequently Asked Questions

Q1. Can I have a sample order before placing a purchase order?

A: Samples are available for testing; customers pay only the express courier cost.

Q2. What is the sample lead time?

A: Standard samples take 3-7 working days; customized samples take 7-15 working days.

Q3. Do you have any MOQ Limit?

A: Low MOQ available; 1 piece for sample checking.

Q4. Can I make personalized/customized products?

A: Yes, we accept custom orders based on your drawings or samples.

Q5. How do you ship the goods, and what is the shipping time?

A: We ship via DHL, UPS, FedEx, TNT, or your freight forwarder, typically arriving in 3-10 days.

Q6. Are OEM and ODM available?

A: Yes, OEM and ODM are available.
