Product Details
Place of Origin: Guangdong China
Brand Name: Jrkconn
Certification: ISO9001
Model Number: IC-283 ST Series
Payment & Shipping Terms
Minimum Order Quantity: Contact us
Price: Contact us
Packaging Details: Tube Packing + Box Packing
Delivery Time: 7-14 working days
Payment Terms: T/T,Western Union,MoneyGram
Supply Ability: 1000000 per week
Features: |
Open Frame |
Type: |
Through Hole |
Insulator Material: |
PBT |
Pitch: |
2.54mm |
Finishing(sleeve): |
Tin Plated |
Finishing (clip): |
Gold Plated |
Insulator Height: |
H=3mm |
Number Of Positions: |
28Pin |
Features: |
Open Frame |
Type: |
Through Hole |
Insulator Material: |
PBT |
Pitch: |
2.54mm |
Finishing(sleeve): |
Tin Plated |
Finishing (clip): |
Gold Plated |
Insulator Height: |
H=3mm |
Number Of Positions: |
28Pin |
Attribute | Value |
---|---|
Type | Through Hole |
Insulator Material | PBT |
Pitch | 2.54mm |
Finishing (sleeve) | Tin plated |
Finishing (clip) | Gold plated |
Insulator Height | H=3mm |
Number of Positions | 28Pin |
Features | Open Frame |

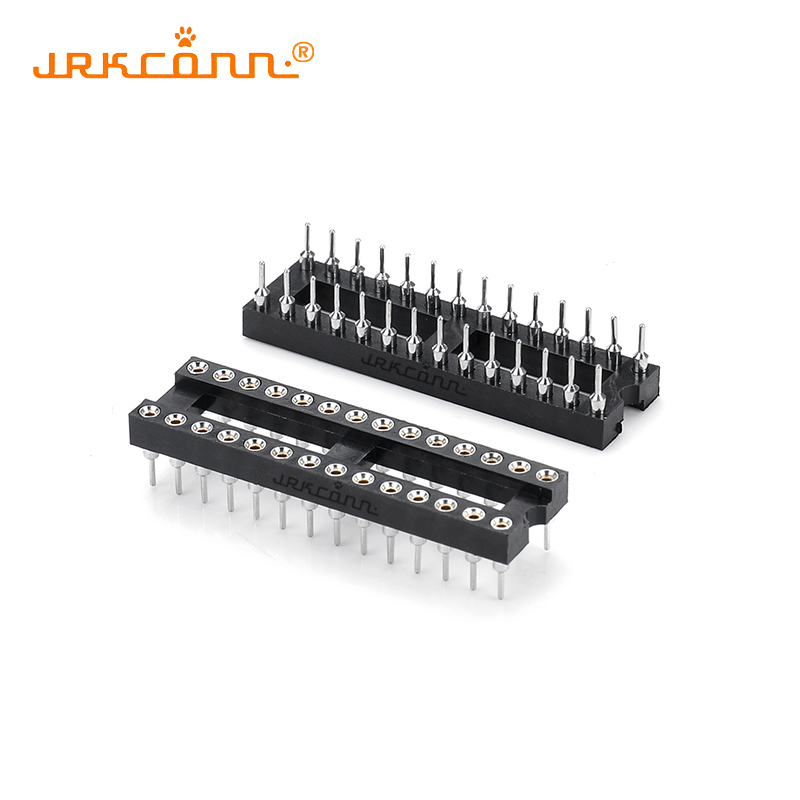

The IC socket (Integrated Circuit socket) is an electrical connector used to mount integrated circuits (ICs), also known as chips, onto a printed circuit board (PCB) without requiring permanent soldering. It serves as a mechanical and electrical intermediary, enabling secure, removable connections between the IC and the PCB.
IC sockets are essential in applications where chips need to be easily inserted, removed, or replaced, such as for testing, programming, prototyping, or upgrading electronic systems. They protect sensitive ICs from heat damage during soldering and simplify maintenance, repair, and reconfiguration of circuits. Common applications include consumer electronics, computers, automotive systems, and industrial equipment.
Row Space | 7.62 mm |
Pitch | 2.54mm |
Pin Length | L=7.43mm |
Insulator Material | PBT UL94V-0 |
Pin Material | Brass, Machined CuZn36Pb3 |
Contact Clip | Berrylim Copper (C17200) |
No. of Positions | 4 Pin~64 Pin available |
Plating | Tin Plating: 2µm/80µ Ni, 5µm/200µ Sn, Gold Plating: 2µm/80µ Ni, full gold |
Rated Current | 3 Amp |
Mechanical Life | Min. 100 cycles |
Contact Resistance | ≤4MΩ/contact |
Insulation Resistance | ≥1,000MΩ at V = 100V |
Operating Voltage | 60V |
Operating Temperature | Gold Plated: -55℃~+125℃, Tin Plated: -40℃~+105℃ |
Packing:
Selling units | Single item |
Package | Tube packing |
Port | Shenzhen |
Delivery:
Quantity (pcs) | Samples | 1 - 100K | > 100K |
---|---|---|---|
Estimated delivery time (business day) | 3 - 7 | 15 | To be negotiated |
Many IC Sockets and Adapters are available that are not listed on the website. If you do not see what you want, please get in touch with us. The better solutions will be provided for you.
We are a professional manufacturer with 15 years of experience specializing in electronic connectors. Our main products include pin headers, female headers, box headers, ejector headers, DIN 41612 connectors, pins, and other electronic connectors, all of which are of high quality and offered at competitive prices.
Yes, we provide samples for our customers to check the quality of our products. We recommend that our customers take the samples from us before placing an order. This will help customers to understand our product and quality better. They are free for 1 or 5 pcs samples, customers only pay the express courier cost.
The standard sample delivery date is about 3~5 working days, and the customized samples need 7~10 business days.
If a customer finds a quality problem, please contact us; we will study the problem and provide solutions as fast as possible.
Always a pre-production sample before mass production and a final inspection before shipment.
Sure, send us your drawing or sample.
Normally, a sample needs 3-4 days; mass production time needs 1-2 weeks for order quantities more than 10K pieces. We can arrange the shipment by DHL, UPS, FedEx, TNT, or any other preferred collector from the customer. It usually takes 7~12 days to arrive. Airline and sea shipping are also optional.
