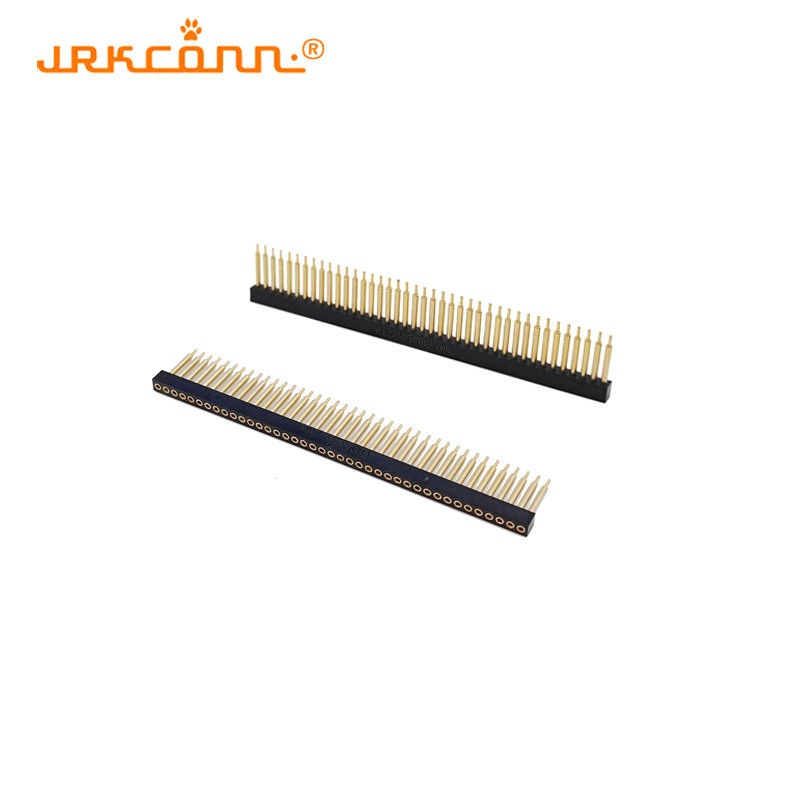

Round Hole Pitch 2mm 180degree Female Pin Header Connector Single Row Header
PH 2.0MM Round hole Female Header Connector Single Row Header 180 Degree Dip
PH 2.0MM Round hole Female Header Connector Single Row Header 180 Degree Dip Specifications
| Insulation Material |
PPS + G.F30 |
| Flammability |
UL94V-0 |
| Color |
White, black, yellow, and red, support custom |
| Pitch |
1.27mm / 2.0mm / 2.54mm / special pitch (optional) |
| Row |
Single Row |
| Terminal Material |
Brass CuZn36Pb3 (C36000) |
| Contact Clip Material |
Beryllium copper (C17200) |
| Plated (outer sleeve) |
Tin plated: 2µm/80µ"Ni, 5µm/200µ"Sn, Gold plated: 2µm/80µ"Ni, Full gold |
| Plated (contact clip) |
Gold plating, Tin plating |
| Contact Resistance |
Max. 10 mΩ |
| Current Rated |
3 A |
| Mechanical Life |
Min. 500 cycles |
| Dielectric Strength |
Min.1000V |
| Plating Temperature |
Gold plating: from -55℃ to 105℃ Tin plating: from -40℃ to 105℃ |
PH 2.0MM Round hole Female Header Connector Single Row Header 180 Degree Dip Packing & Delivery
Packing:
| Selling units |
Single item |
| Package |
Tube / PE bag/ tray / tape&reel packing |
| Port |
Shenzhen |
Delivery:
| Quantity (pcs) |
1 - 100K |
> 100K |
|
Estimated delivery time
(business day)
|
15 |
To be negotiated
|
PH 2.0MM Round hole Female Header Connector Single Row Header 180 Degree Dip Custom Process
Many products are available that are not listed on the website. If you do not find what you want, please contact us.
How To Get A Machined Female Header Connector:
You should tell us the following information:
1. The pitch of the product, eg:1.27mm, 2.0mm, 2.54mm, or special pitch.
2. The material of the insulator, outer sleeve, and contact clip.
3. The plating of the outer sleeve and contact clip that you want. Eg: the outer sleeve is Gold Plating, Tin Plating, or another plating. The contact clip is Gold/Tin Plating or other plating.
4. The packing of product. There are four types: PE bag, Tube, Tray, tap & reel packing.
5. Your order quantity and your requirements.
Our Service:
1. All products are 100% electrically tested before shipment, ensuring optimum performance.
2. Samples are always available. (Your drawings or specification requirements are always welcome.)
3. any inquiry or question will be responded to within 24 hours.
4. Good after-sales service.
5. Welcome to visit our factory at any time.
6. Short lead-time.
7. OEM & ODM is available.
FAQ
1. Are you a manufacturer or trade company?
We are a professional manufacturer with 15 years of experience specializing in electronic connectors. Our main products are pin headers, female headers, box headers, ejector headers, DIN41612 connectors, pins, and other electronic connectors, with good quality and competitive prices.
2. Can I get the sample before placing a purchase order?
Yes, we provide the samples for our customers to check the quality of the product.
We recommend our customers take the samples from us before placing an order. This will help customers to understand our product and quality better.
They are free for 1 or 2 pcs samples, and customers only pay the express courier cost.
3. What is the sample lead time?
The standard sample delivery date is about 3~5 working days, and the customized samples need 7~10 working days.
4. What is your after-sales service?
If a customer finds a quality problem, please contact us, and we will study the problem and provide solutions as fast as possible.
