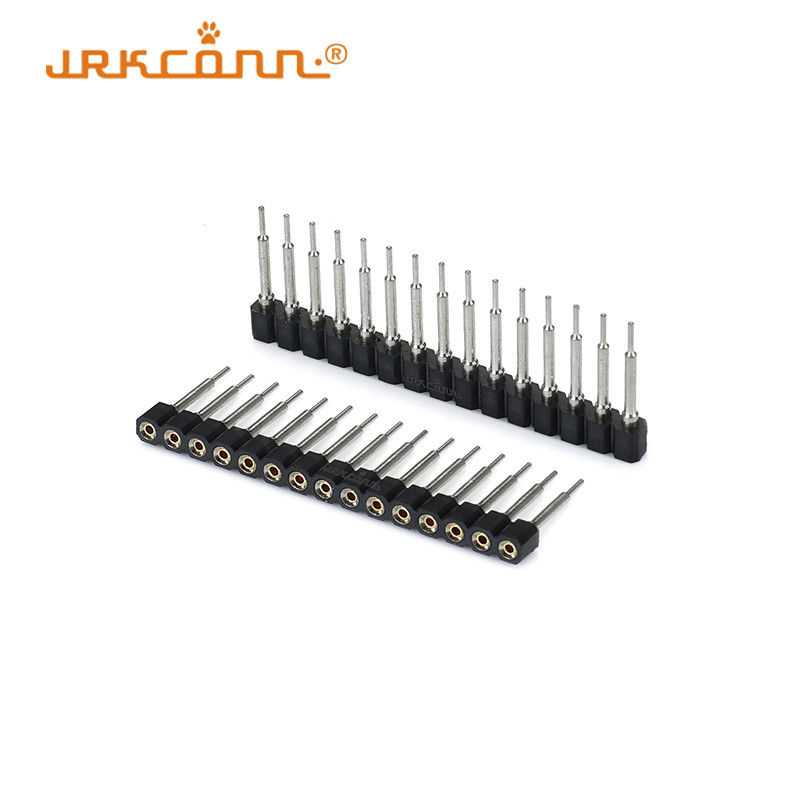

Round Pin Machined Female Header Connector Through - Hole Female Pcb Header
Round Pin Machined Female Header Connector Through-Hole Female Pcb Header
Round Pin Machined Female Header Connector Through-Hole Female Pcb Header Specifications
The Features Of Machined Female Header Connector :
1. High-precision machining ensures a perfect fit with mating connectors.
2. Durable construction for long-term use.
3. Reliable electrical connection performance.
4. Resistant to corrosion and wear.
5. Easy to install and remove.
6. Compact design saves space.
7. Can withstand various environmental conditions.
8. Offers stable signal transmission.
| Insulation Material |
Black glass-filled polyester PPS + G.F30 |
| Flammability |
UL94V-0 |
| Pitch |
1.27mm / 2.0mm / 2.54mm / special pitch (optional) |
| Row |
Single row |
| Mating Pin |
0.40 mm ~ 0.56 mm |
| Contacts |
Availability from 1 to 40 contacts |
| Color |
Black, support custom |
| Terminal Material |
Brass CuZn36Pb3 (C36000) |
| Contact Clip Material |
Beryllium copper (C17200) |
| Plated (outer sleeve) |
Tin plating, gold plating, gold/tin plating |
| Plated (contact clip) |
Gold/Tin plating |
| Contact Resistance |
Max. 10mΩ |
| Rating Current |
3 A |
| Mechanical Life |
Min. 500 cycles |
| Dielectric Strength |
Min.1000V |
| Plating Temperature |
Gold plating: from -55℃ to 105℃ Tin plating: from -40℃ to 105℃ |
Round Pin Machined Female Header Connector Through-Hole Female Pcb Header Packing & Delivery
Packing:
| Selling units |
Single item |
| Package |
Tube / PE bag/ tray / tape&reel packing |
| Port |
Shenzhen |
Delivery:
| Quantity (pcs) |
1 - 100K |
> 100K |
|
Estimated delivery time
(business day)
|
15 |
To be negotiated
|
Round Pin Machined Female Header Connector Through-Hole Female Pcb Header Custom Process
How To Choose Machined Female Header Connectors:
You should tell us the following information:
1. The pitch of the product, eg:1.27mm, 2.0mm, 2.54mm, or special pitch.
2. The material of the insulators, the terminals, and the contact clips.
3. The plating of the terminals and the contact clips that you want. The standard is gold plating, tin plating, and gold/tin plating.
4. Your order quantity and your requirements.
5. Customized service is available.
Our Advantages:
1. Production experience: our factory has more than 15 years experience of in production electronics connectors assembly.
2. Complete variety and High-quality products: more than 1,000 kinds of products and all products are 100% ROHS Compliant and are strictly tested before shipment.
3. MOQ customization and Free samples: support low MOQ customization and free samples within 3-7 business days.
4. Attractive prices and Fast Lead Time: 90% automatic production enables us to finish customers' orders very quickly.
5. Excellent service: rapid response in 24 hours, no matter product inquiry or support. We'd like to do our best to support you by offering samples, products, or advice.
FAQ
1. Are you a manufacturer or trade company?
We are a professional manufacturer with 15 years of experience specializing in electronic connectors. Our main products are pin headers, female headers, box headers, ejector headers, DIN41612 connectors, pins, and other electronic connectors, with good quality and competitive prices.
2. Can I get the sample before placing a purchase order?
Yes, we provide the samples for our customers to check the quality of the product.
We recommend our customers take the samples from us before placing an order. This will help customers to understand our product and quality better.
They are free for 1 or 2 pcs samples, and customers only pay the express courier cost.
3. What is your after-sales service?
If a customer finds a quality problem, please get in touch with us, and we will study the problem and provide solutions as fast as possible.
