Name: 8.25mm Barrier Blocks JRK35C Screw Terminal Connector With 20A Current
Brand: SHENZHEN JRKCONN ELECTRONICS CO.,LTD
SKU: JRK35C
Price: 0.07 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: Jrkconn

Certification: ISO9001

Model Number: JRK35C

Payment & Shipping Terms

Minimum Order Quantity: Contact Us

Price: Contact us

Packaging Details: PE Bag Packaging

Delivery Time: 7-14 working days

Payment Terms: T/T,MoneyGram,D/P,D/A,L/C

Supply Ability: 1000000 per week

Get Best Price

Chat Now

Product Details

Product Description

Highlight:

Pitch:	8.25 Mm	Poles:	2P-24P
Current Rating:	20 Amp	Insulator Material:	PA66, UL94V-0
Material Of Pin Header:	Brass, Tin Plating	Wire Gauge:	22-14 AWG

Pitch:	8.25 Mm
Poles:	2P-24P
Current Rating:	20 Amp
Insulator Material:	PA66, UL94V-0
Material Of Pin Header:	Brass, Tin Plating
Wire Gauge:	22-14 AWG

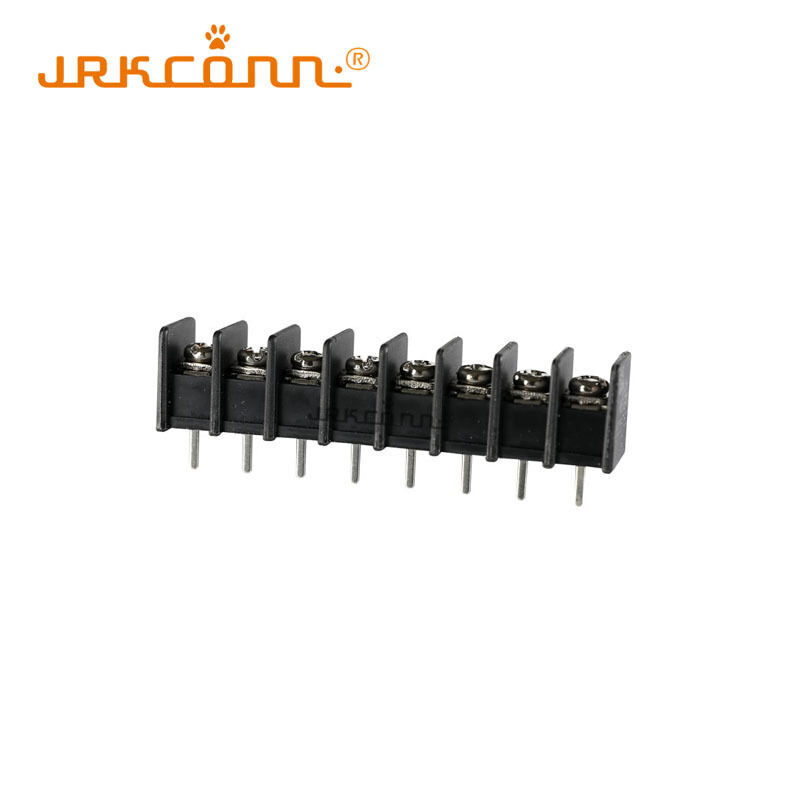

8.25mm Barrier Blocks JRK35C Screw Terminal Connector With 20A Current

High-quality 8-way screw barrier terminal block connector designed for reliable electrical connections in demanding industrial applications.

Key Characteristics

Insulating Barriers: Physical walls between terminals improve electrical isolation and increase safety.
Screw-Clamp Connection: Wires are secured using screws, ensuring strong mechanical retention and stable electrical contact.
High Current Capability: Suitable for power distribution and industrial electrical systems.
Durable Construction: Designed to withstand vibration, heat, and long-term operation.
Flexible Wiring Options: Accommodates a wide range of wire sizes and configurations.

Technical Specifications of 8.25mm Barrier Terminal Block

Model Number	JRK35C	Pin Header	Brass, Tin plating
Type	Barrier Blocks	Housing Material	Polyamide (PA66), Nylon 6/6
Pitch	8.25 mm	Rated Voltage	300V
Poles	2P-24P	Withstanding Voltage	AC 2000V / 1Min
Screws Material	M3, Steel, Zinc Plating	Rated Current	20A
Wire Range	22-14 AWG	Max. Torque Value	8kg.cm
Temp Range	-40℃ ~ +105℃	Mounting Type	Through Hole
Color	Black	Application	Industrial Control Systems, HVAC Systems, Power Supply, Transportation, Consumer Electronics, Telecommunications

Note: The actual product color may vary slightly from images due to monitor settings. All measurements are taken manually and may have slight deviations.

Technical Drawing of JRK35C

Manufacturing Process

Packaging & Delivery

Selling Units	Package	Port
Single item	PE bag + carton box packing	Shenzhen
Quantity (pcs)	Samples	Estimated delivery time (business day)
1 - 100K	3 ~ 7	15

Why Choose JRKCONN?

Over 13 years of specialized experience in terminal block production with deep industry knowledge and refined manufacturing processes.
Strict 100% inspection policy for all products before shipment, guaranteeing reliability and performance.
One-stop service simplifies your supply chain and saves valuable time and costs.
Expert technical support and custom technical drawing assistance for tailored solutions.

Frequently Asked Questions

Q: Can I have a sample order before placing a purchase order?

A: Samples are available for testing; customers pay only the express courier cost.

Q: What is the sample lead time?

A: Standard samples take 3-7 working days; customized samples take 7-15 working days.

Q: Do you have any MOQ Limit?

A: Low MOQ available; 1 piece for sample checking.

Q: Can I make personalized/customized products?

A: Yes, we accept custom orders based on your drawings or samples.

Q: How do you ship the goods, and how long does it take?

A: We ship via DHL, UPS, FedEx, TNT, or your freight forwarder, typically arriving in 3-7 days.
